Functionalities

AeroDR 1717HQ Functionalities

Can be used anywhere
The battery lasts as long as the panel
Multifunctional console CS-7
Works with your existing equipment
2 second preview via smart GUI display
High DQE, lower dose
Power-saving, patient safety technology

Features

AeroDR 1717HQ Key Features

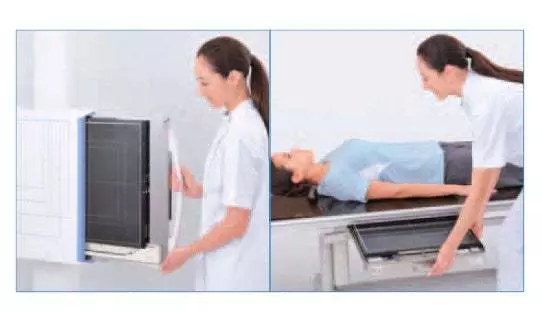

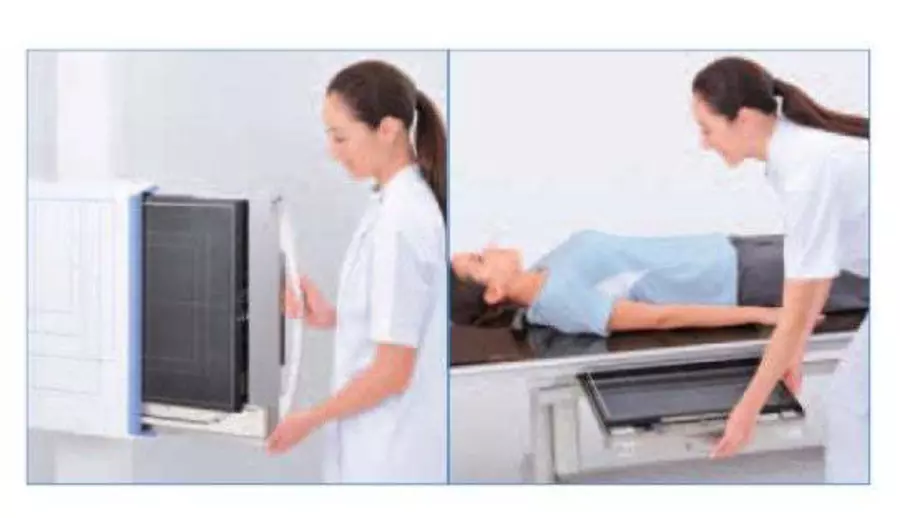

There is no longer a need to rotate the panel from portrait to landscape and vice versa in the bucky tray depending on the patient’s size when performing chest or abdominal X-ray procedures. Since the image area is increased, additional X-ray field is available during positioning, thereby reducing positioning errors.

AED
Capacitor
Grip
Lightweight

Robust
Speed
Waterproof

Specifications & Downloads

Specifications

Wireless Digital Radiography System AeroDR
Detection method	Indirect conversion method
Scintillator	CsI (Cesium Iodide)
Dimensions (W x D x H)	43x43cm : 459.8 x 460.2 x 15.9 mm
Weight	43x43cm : 3.6 kg
Pixel Size	175 μm
Image area size	43x43cm : 425.25x425.95mm (2,428x 2,428 pixels)
AD conversion	16 bit (65,536 gradients)
Communication	Dedicated wired Ethernet connection / wireless LAN ( IEEE802.11a compliant )
WLAN encryption	Wireless encryption method : AES / Authentication method : WPA2-PSK
Cycle time	43x43cm : Approx. 8.0 seconds when connected with the dedicated wired connection / Approx. 14.0 seconds when connected to wireless LAN connection
Dynamic Range	4 digits
Battery charging time empty to full	Within 30 minutes (when using the AeroDR Battery Charger ) Within 60 minutes (when using the dedicated cable)
Battery duration in standby status	Approx. 16 hours
Number of exposable images	43x43cm : 173 images / 4.8 hours * Under the condition that the interval between studies is five minutes and three images are captured in each study, assuming 20 seconds for each exposure to position a patient.
Battery expected lifetime	Exceeds the AeroDR Detector product lifetime
Recommended storage and usage environment conditions	When operating : 10 to 30°C / 35 to 80% RH When not operating : –10 to 40°C / 20 to 90% RH

・The described performance may change depending on the environment and frequency of use.
・Specifications based on fully charged battery.
・Specifications are subject to change without prior notice.
* Ensure no water condensation.
