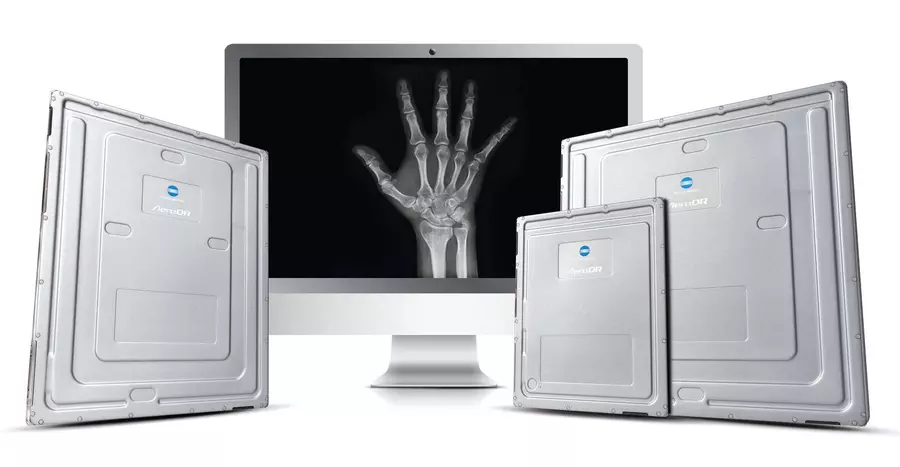

AeroDR HD

AeroDR HD

Wireless Digital Radiography System

  • 100 μm pixel size
  • Higher DQE & lower dose
  • Lightweight and robust structure
  • Fast and reliable workflow
  • Internal access point
  • Internal storage
  • Waterproof
Contact us now
AeroDR HD_image_1
AeroDR HD_image_2
AeroDR HD_image_4
AeroDR HD_image_5
AeroDR HD_Grip Design
AeroDR HD_LED Indicator
AeroDR HD_Performance Pixels
AeroDR HD

Functionalities

Functionalities

AeroDR HD Functionalities

AeroDR HD_image_3

  • Updated AeroSync Technology

  • High Performance Capacitor

  • Rapid Cycle time

  • New Grip Design

  • Print features

    Various print features like watermark, n-up, poster or booklet page order can be selected

  • Copy features

    2in1 and 4in1 copying can be selected

  • TWAIN scan

    for clever digitisation of documents

  • Low energy consumption and great eco-performance

    Save resources and money

  • Thicker CsI Scintillator

  • Waterproof

AeroDR HD_image_3
More functionalities

Features

Features

AeroDR HD Key Features

AeroDR HD Key Features

  • Internal access point

    AeroLink internal access point


  • Technology feature icon

    AeroStorage internal storage


  • Productivity feature icon

    Updated AeroSync for longer automatic exposure detection


  • Media handling feature icon

    Edge of the bone is more clear


  • Higher DQE and Lower Radiation doses


AeroDR HD_image_2

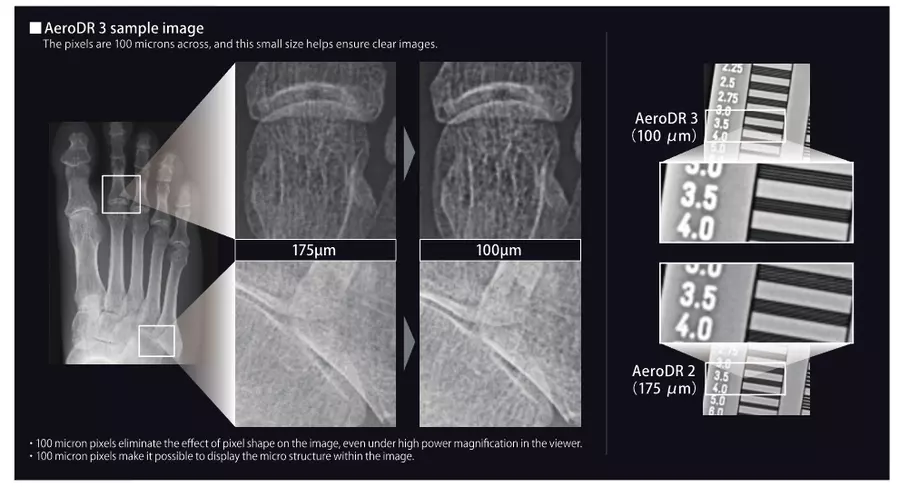

  • Micro structures

    Display micro structures


  • No pixel shape

    No “pixel shape” when zooming in


  • Robust

    Lightweight and Robust material


  • Fast throughout

    Fast and Reliable Workflow


  • Visibility

    Better visibility of trabecular bone


Specifications & Downloads

Specifications & Downloads
Product Name AeroDR HD 1012 AeroDR HD 1417 AeroDR HD 1717
Detection method Indirect Conversion Indirect Conversion Indirect Conversion
Scintillator CsI (Cesium Iodide)
Pixel size 100μm*
Inside Access Point Yes (Aero Link)
Inside Memory Up to 100 images (Aero Storage)
Weight 1,5 kg 2,6 kg 3,2 kg
Battery Type Lithium Ion Capacitors
External dimensions (WxDxH) 282 x 333 x 15 mm 384 x 460 x 15 mm 460 × 460 × 15mm
Charging time 20 min or less 30 min or less 30 min or less
Image area size 245,6 x 296,8 mm 348,8 x 425,6 mm 424,8 x 424,8 mm
Auto Exposure Detection (AED) Available (AeroSync)
Durability
• Point load
• Surface load
• Water resistance
• Drop resistance
180 kg @ ø 40 mm
400 kg @ effective image area overall
IPX6 including power cell
MIL-STD-810G
Housing material Carbon Monocoque Design
Communication Dedicated wired Ethernet connection / Wireless LAN (IEEE 802.11a/n (1) compliant)
Cycle time
• 100 microns		 Ca. 5s (wired)
Ca. 5s (wireless)		 Ca. 6s (wired)
Ca.7s (wireless)		 Ca. 6s (wired)
Ca.7s (wireless)
Battery Performance
(Exposure linkage with X-ray unit)		 Up to 145 exposures and 3,9 hours(100)
Up to 165 exposures and 4,5 hours(200)		 Up to 251 exposures and 6,9 hours(100)
Up to 309 exposures and 8,6 hours(200)		 Up to 217 exposures and 6,0 hours(100)
Up to 276 exposures and 7,6 hours(200)
Usable grid frequency 60lp/cm, 40lp/cm, 34lp/cm
A/D conversion 16 bit (65.536 gradients)
Encryption Wireless encryption method: AES / Authentication method: WPA2-PSK

* Default pixel size is 100μm, but can be set to 200μm to save storage space
