The next standard for digital upgrades

  • 150 µm resolution
  • CsI scintillator
  • ImagePilot software provides you with Registration
    + Acquisition + Viewer + Measurements + miniPACS functionality
  • Automatic Exposure Detection (AED) no cable connections needed
  • Internal Access Point for an easy installation
  • AeroStorage for working offline in case needed
  • Preview within 4 seconds
AeroDR NS
AeroDR NS
AeroDR NS
AeroDR NS
AeroDR NS
AeroDR NS

Functionalities

Functionalities

AeroDR NS Functionalities

AeroDR NS Functionalities
  • Shared address book

    The MFP-internal address book can be shared with the PC fax client

  • Tray selection

    Choice of input tray / print media and output tray for easy visibility of incoming faxes

  • Box function

    Storing of print, copy, scan and fax jobs for recall to send and print - for frequently printed documents like brochures, forms, pricelists etc.

  • Personal, Group and Public

    User access definition for different boxes

  • Sharing

    Copying of documents from user box to user box

  • Online access

    User box file access via web browser or box operator utility

AeroDR NS Functionalities

Features

Features

AeroDR NS Key Features

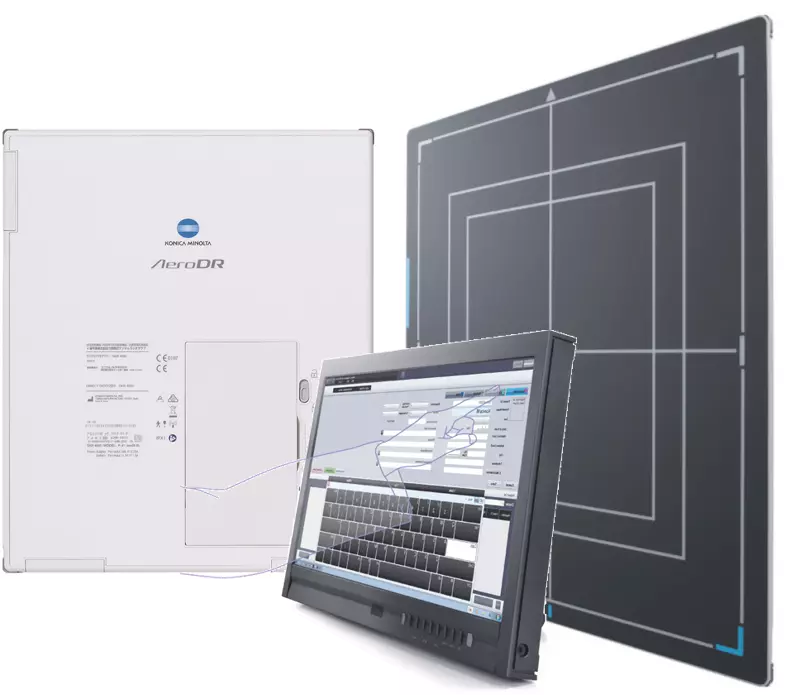

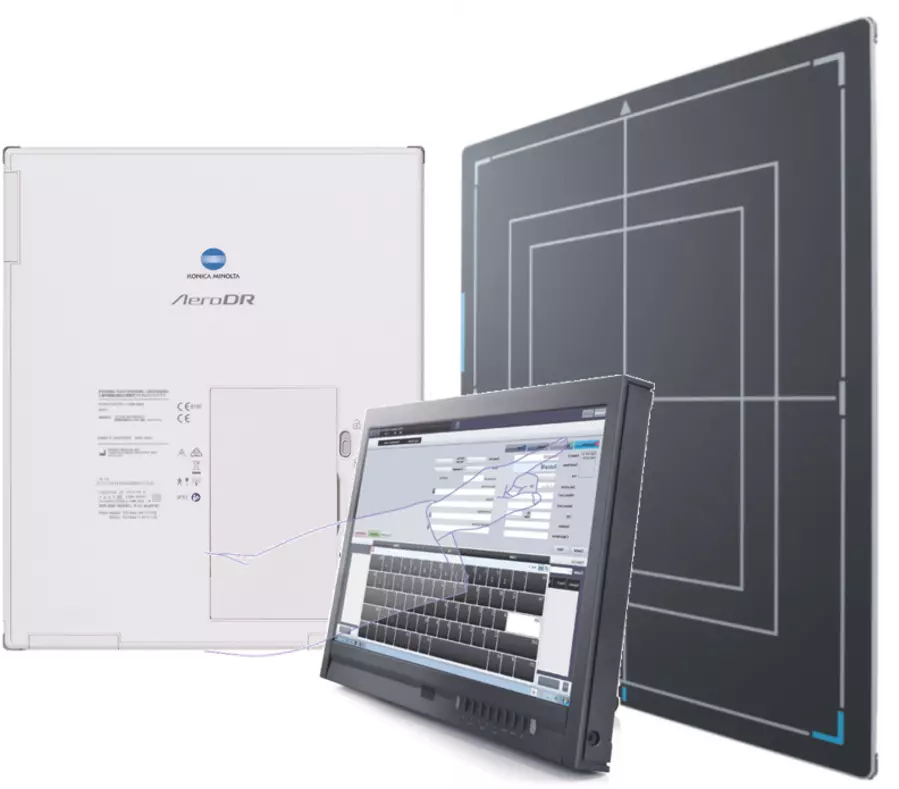

In case you are planning to buy a CR reader, why not consider switching to DR? Konica Minolta introduces a brand new economic DR alternative: AeroDR NS! This 14 x 17” Flat Panel Detector supports you with a complete DR workflow solution and is compatible with any existing static RAD room and mobile RAD system. ImagePilotTM software provides you with Registration + Acquisition + Viewer + Measurements + mini-PACS functionality for your daily workflow: a true All-in-One solution!

  • hc_feature_AED_icon

    AED


  • AeroStorage

    AeroStorage

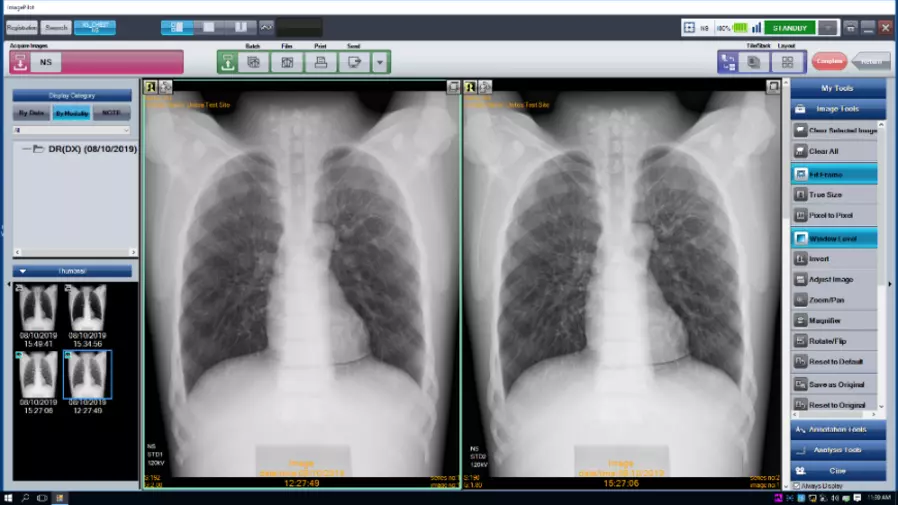

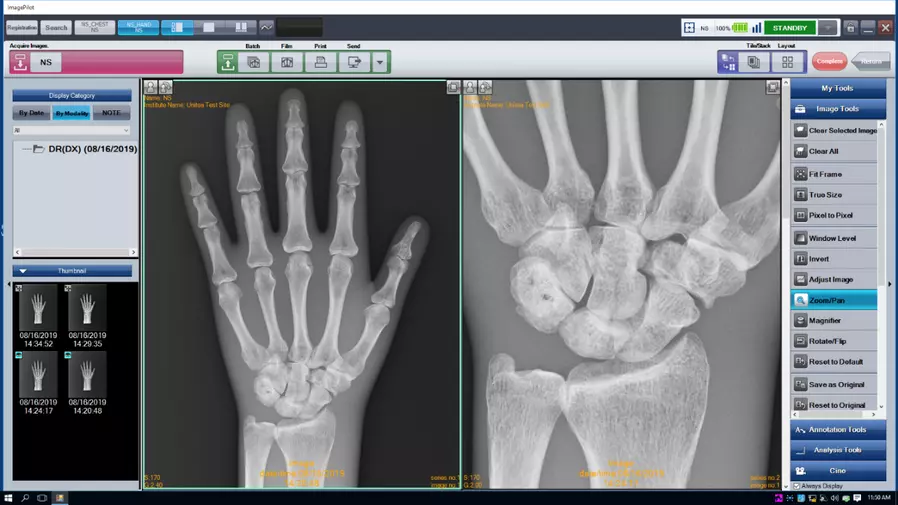

  • ImagePilot

    ImagePilot


AeroDR NS

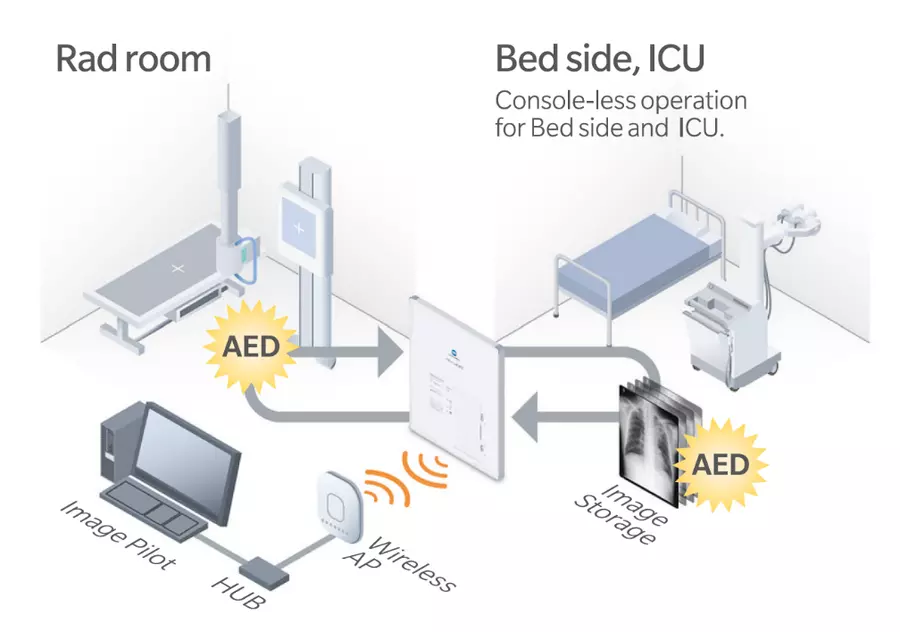

  • Internal access point

    Internal Access Point


  • Fast throughout

    Preview within 4 seconds


  • Pixel size of only 150 μ

    150 µm resolution


Specifications & Downloads

Specifications & Downloads

AeroDR NSTM Technical Specifications


Console software ImagePilotTM
X-ray Detection method Method: indirect,  Scintillator: CsI (Cesium Iodide)
DQE 40% (1lp/mm)
Pixel size 150 μm
Image area (valid image) 2304 x 2800 pixels (345.6 x 420.0 mm)
X-ray linkage AED: Automatic Exposure Detection (Automatic X-ray detection without X-ray I/F)
Cycle time First View: 4 sec / Cycle Time: 10 sec
Internal AP Available  (in combination with notebook PC-type ImagePilot)
Image Storage Available  (up to 200 images)
Wireless specifications IEEE802.11a/n/ac
Durability Total surface load: 150 kg
Point load: 100 kg @ φ40 mm
Water resistance Panel: IPX1 including battery
Battery Lithium ion battery (detachable type)
Battery performance 212 images or 5.9 hours
Battery duration in standby 7.6 hours
Available grid 40lp/cm
Dimension 384 mm x 460 mm x 15 mm (ISO-4090-2001(JIS-Z4905) compliant)
Weight 3.6 kg (including battery)

Brochure AeroDR NS
