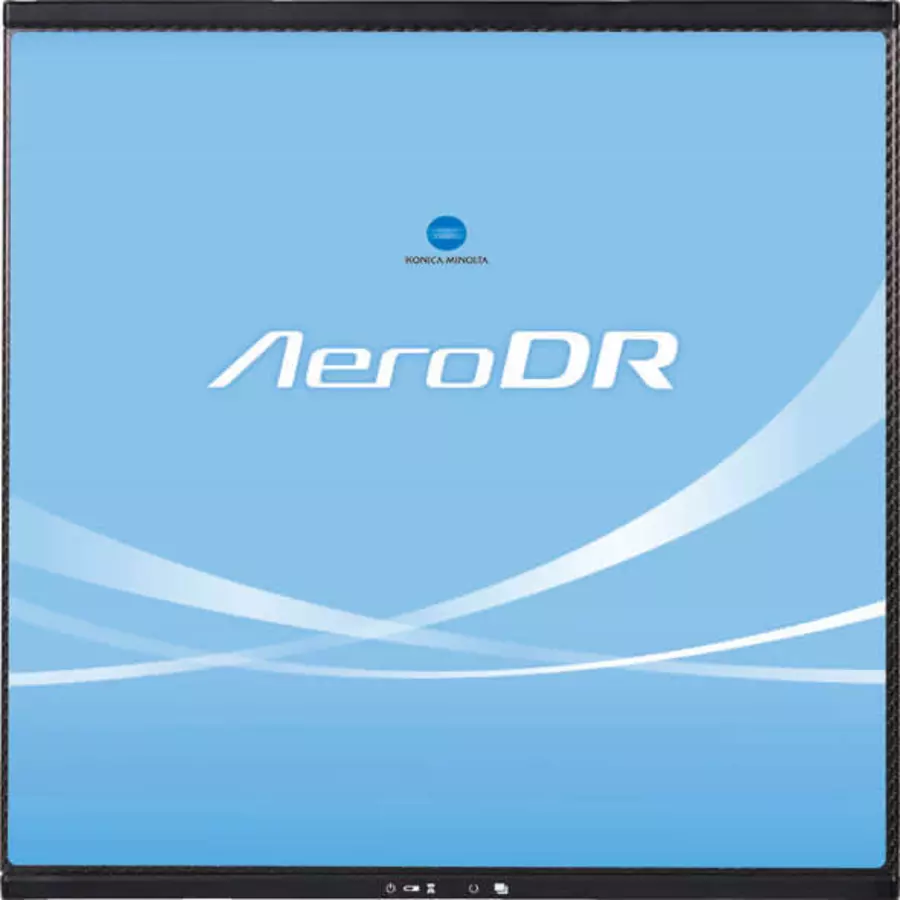

AeroDR 1717HQ

Flat panel detector

  • Continuous detector charging
  • High image quality
  • Shared FPD Solution
  • Large area detector
  • Lightweight
Contact us now
AeroDR 1717HQ_image_1
AeroDR 1717HQ_image_2
AeroDR 1717HQ_image_3
AeroDR 1717HQ_image_4

Functionalities

Functionalities

AeroDR 1717HQ Functionalities

hc_divider_image_AeroDR 1717HQ

  • Can be used anywhere

  • The battery lasts as long as the panel

  • Multifunctional console CS-7

  • Works with your existing equipment

  • 2 second preview via smart GUI display

  • High DQE, lower dose

  • Power-saving, patient safety technology

hc_divider_image_AeroDR 1717HQ
More functionalities

Features

Features

AeroDR 1717HQ Key Features

There is no longer a need to rotate the panel from portrait to landscape and vice versa in the bucky tray depending on the patient’s size when performing chest or abdominal X-ray procedures. Since the image area is increased, additional X-ray field is available during positioning, thereby reducing positioning errors.

  • hc_feature_AED_icon

    AED


  • hc_feature_battery_icon

    Capacitor


  • hc_feature_grip_icon

    Grip


  • hc_feature_feather_icon

    Lightweight


AeroDR 1717HQ_image_2
  • hc_feature_weight_icon

    Robust


  • Fast throughout

    Speed


  • hc_feature_waterproof_icon

    Waterproof


Specifications & Downloads

Specifications & Downloads

Wireless Digital Radiography System AeroDR


Detection method Indirect conversion method
Scintillator CsI (Cesium Iodide)
Dimensions (W x D x H) 43x43cm : 459.8 x 460.2 x 15.9 mm
Weight 43x43cm : 3.6 kg
Pixel Size 175 μm
Image area size 43x43cm : 425.25x425.95mm (2,428x 2,428 pixels)
AD conversion 16 bit (65,536 gradients)
Communication Dedicated wired Ethernet connection / wireless LAN ( IEEE802.11a compliant )
WLAN encryption Wireless encryption method : AES / Authentication method : WPA2-PSK
Cycle time 43x43cm : Approx. 8.0 seconds when connected with the dedicated wired connection / Approx. 14.0 seconds when connected to wireless LAN connection
Dynamic Range 4 digits
Battery charging time empty to full Within 30 minutes (when using the AeroDR Battery Charger )
Within 60 minutes (when using the dedicated cable)
Battery duration in standby status Approx. 16 hours
Number of exposable images 43x43cm : 173 images / 4.8 hours
* Under the condition that the interval between studies is five minutes and three images are captured in each study, assuming 20 seconds for each exposure to position a patient.
Battery expected lifetime Exceeds the AeroDR Detector product lifetime
Recommended storage and usage environment conditions When operating : 10 to 30°C / 35 to 80% RH
When not operating : –10 to 40°C / 20 to 90% RH



・The described performance may change depending on the environment and frequency of use.
・Specifications based on fully charged battery.
・Specifications are subject to change without prior notice.
* Ensure no water condensation.
