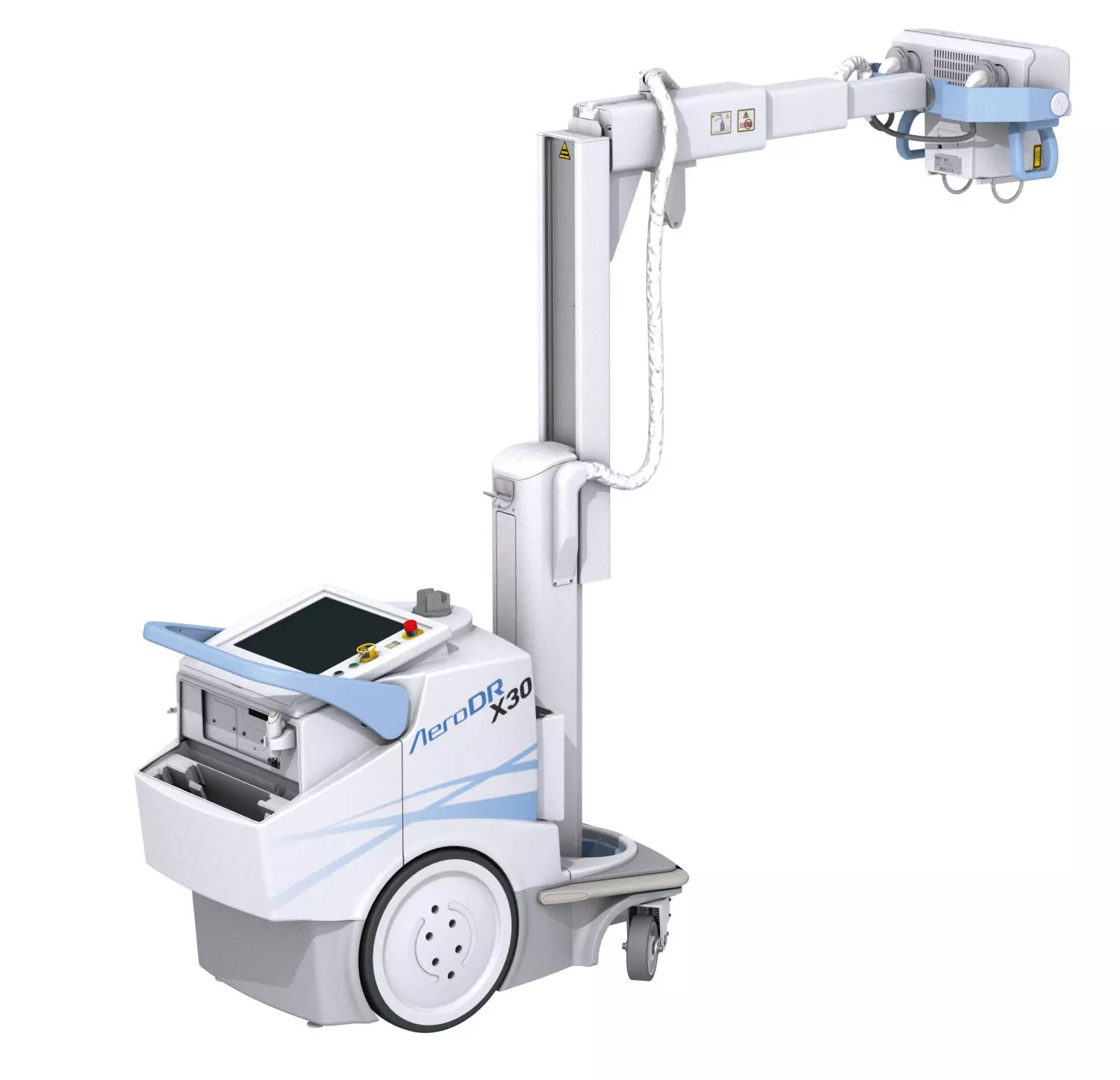

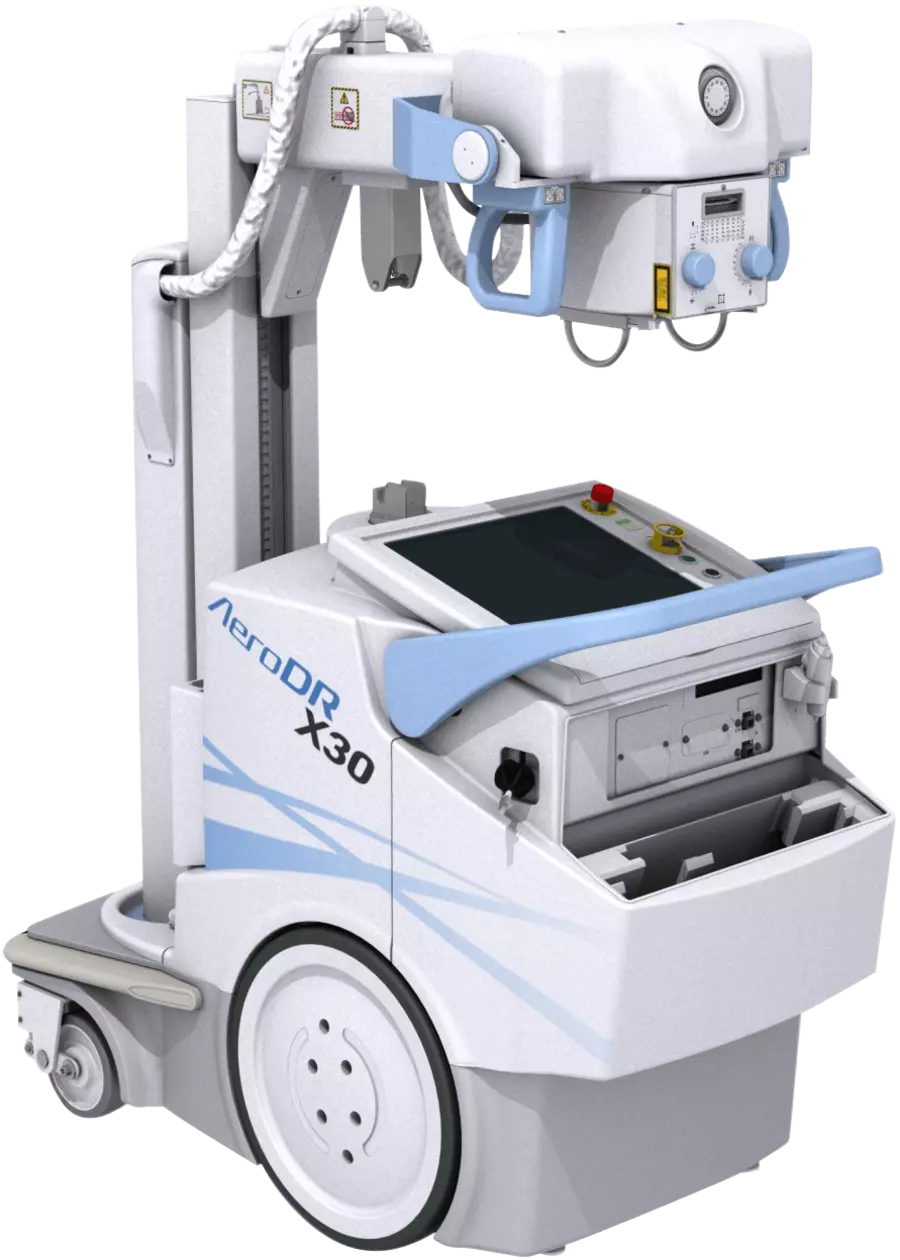

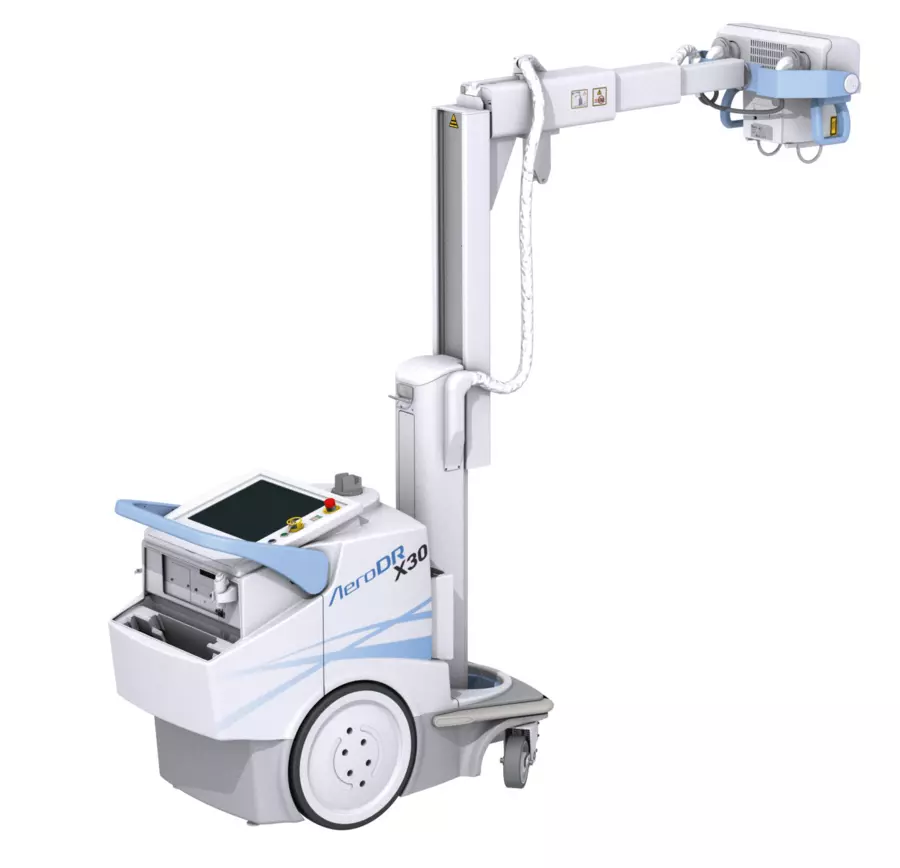

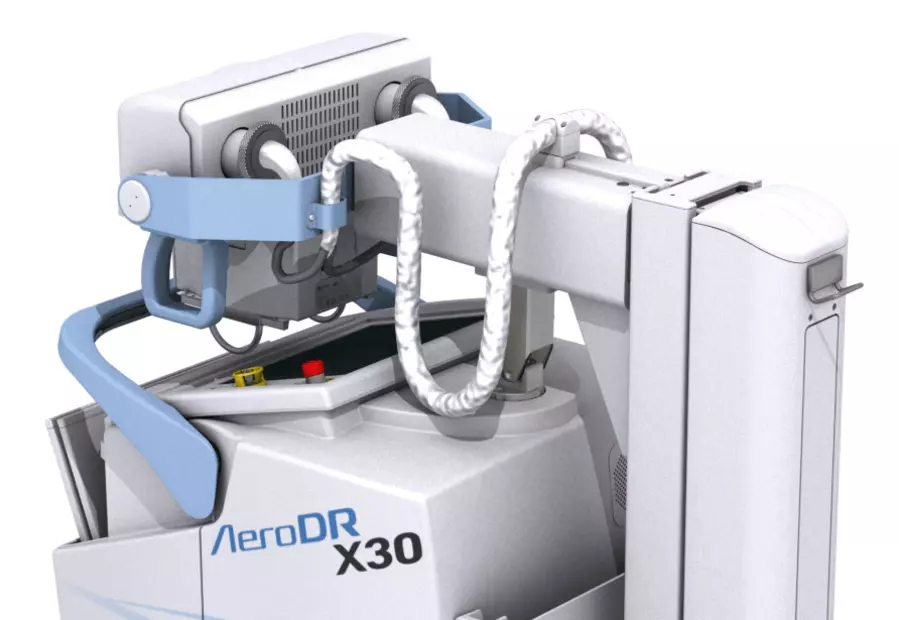

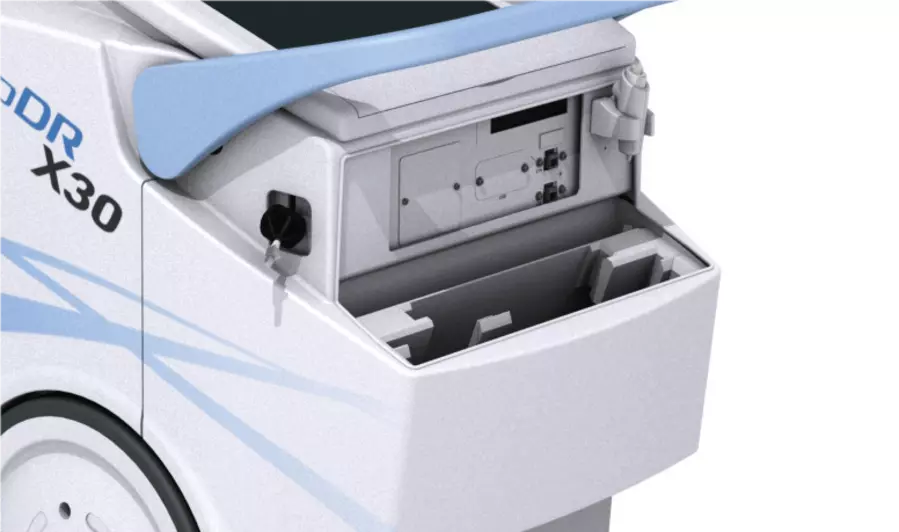

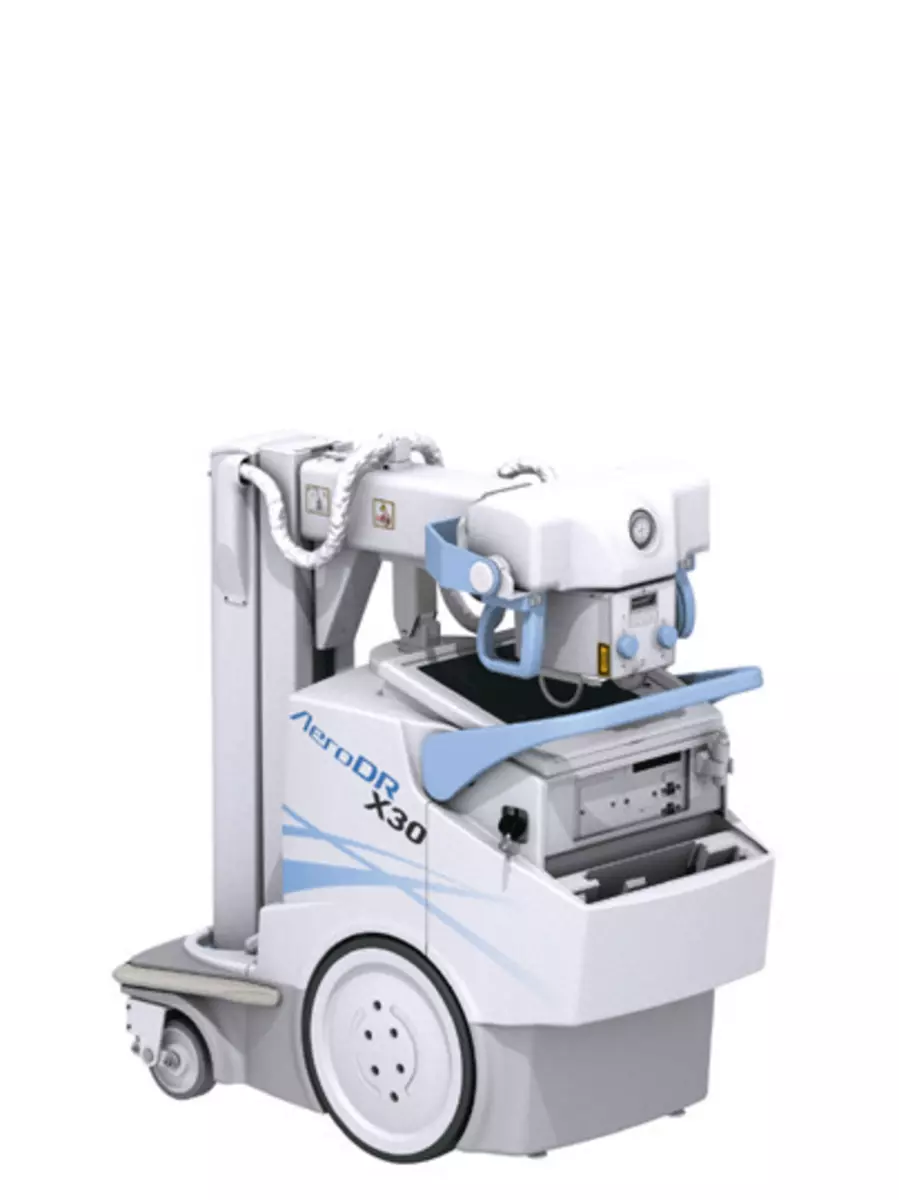

AeroDR X30

Digital Mobile X-ray System

  • Easy positioning
  • Wireless connectivity
  • Agile- fast- precise
  • Fully motorized
  • Retractable column
  • Detectors charge in the bin
Contact us now
AeroDR X30_image_1
AeroDR X30_image_2
AeroDR X30_image_3
AeroDR X30_image_4
AeroDR X30_image_5
AeroDR X30_image_6
AeroDR X30_image_7

Functionalities

Functionalities

AeroDR X30 Functionalities

hc_divider_image_AeroDR X30

  • Additional Controls

  • Bump Sensors

  • Capacitor technology

  • Integrated CS-7 console

  • Easy drive handle

  • Keep track of your track

  • Fully motorized

  • Panel Roaming

  • Always ready to perform

  • Wireless connectivity

hc_divider_image_AeroDR X30
More functionalities

Features

Features

AeroDR X30 Key Features

Not all X-ray exams can be performed in the X-ray room itself. Sometimes, care needs to come to the patient. The AeroDR X30 Mobile X-ray System enables you to perform digital diagnoses wherever the patient is in the hospital or medical facility. Bedside exams may be needed in case patients can’t be moved or diagnosed in regular X-ray rooms. In those cases Mobile Digital X-ray is the right technology to use. AeroDR X30 is specifically designed to carry out bedside exams as easy and straightforward as possible.

  • hc_feature_compact_icon

    Compact system with a smart and space saving design


  • Smart tablet icon

    Wide range of flat panel detectors


  • Key Feature Xray resolution

    Suitable for imaging in incubators


AeroDR X30_image_2
  • hc_feature_position_icon

    Easy positioning


  • Manage all your campaigns in one portal

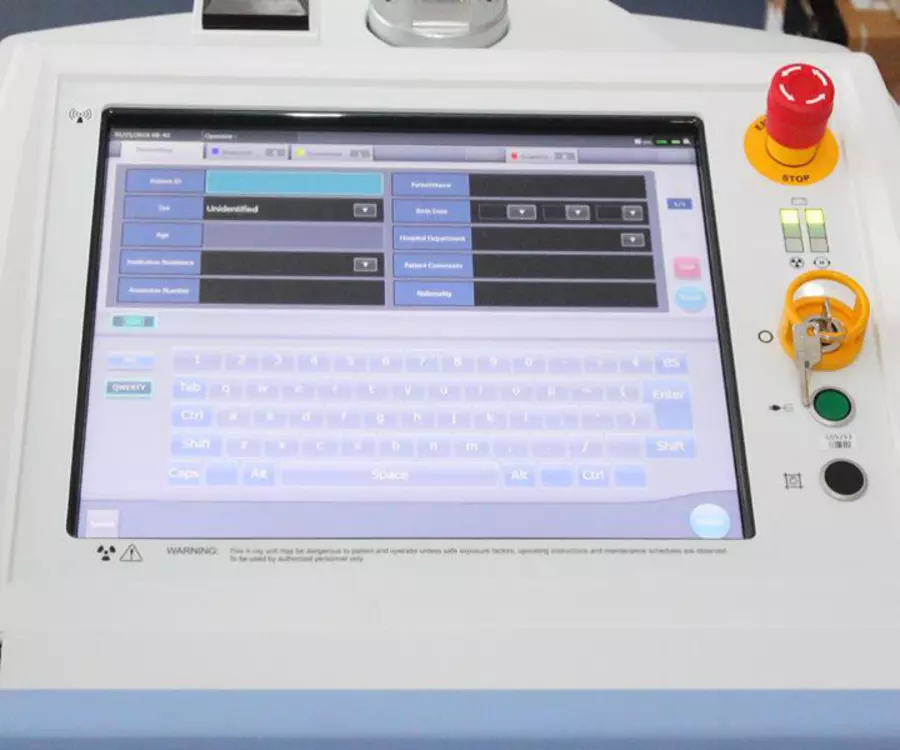

    Touchscreen


  • hc_feature_wireless_icon

    Wireless


Specifications & Downloads

Specifications & Downloads
Mobile Unit
Weight Standard unit: 560 kg Telescopic column: 580 kg
Size (LxWxH) Standard Unit: 1.360 x 670 x 1.980 mm Short Column: Height: 1.840 mm Telescopic Column Unit: Height: 1.340 mm
Console Screen 17” Touch Screen
Max. speed / slope 5 km/h / 5° (8.8%)
Anti-collision system Front bumpers
Batteries 2 independent batteries for driving and imaging Driving: Lead Acid batteries Imaging: Lead Crystal batteries
Battery performance 137.500 mAs @ 80 kVp
Collimator Manual collimator

Generator
Output Power [kW] 20 32 40 50
kVp range 40 -125 40 – 150
mA range 10 -320 10 – 500
Exposure time range 1 msec to 10 sec
mAs range 0,1 to 500 mAs
Available tubes Toshiba E7884X Toshiba E7886X -/-
Exposure time range 1 msec to 10 sec
mAs range 0,1 to 500 mAs
Available tubes Toshiba E7884X Toshiba E7886X -/-

X-RayTubes
Type E7884X E7886X
Nominal voltage 150kV 150kV
Focal Spot 0,6/1,2mm 0,7/1,3mm
Anode heat content 210 kJ
(300kHU)		 210 kJ
(300kHU)
Anode Angle 12° 16°

Options
Intelligent Grid (Software Grid)
Grids
Infrared Remote Control for exposure and collimator light
Dose Area Product (DAP) meter
Manual Collimator with double laser and manual fi lters
Telescopic column (height: 1,34 m)
Short column (height 1,84 m)

Brochure AeroDR X30
